Freeman Core Vent Wax

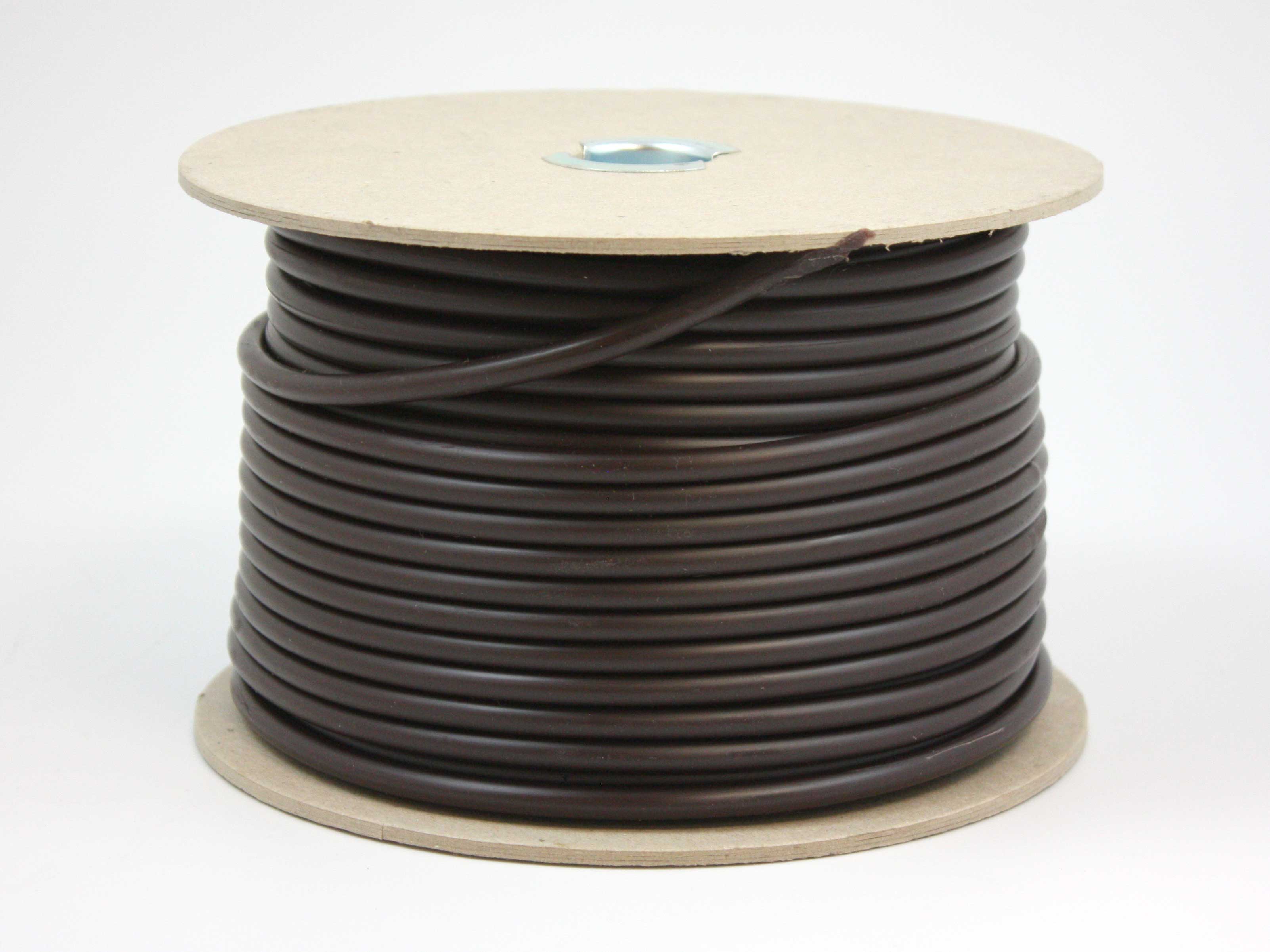

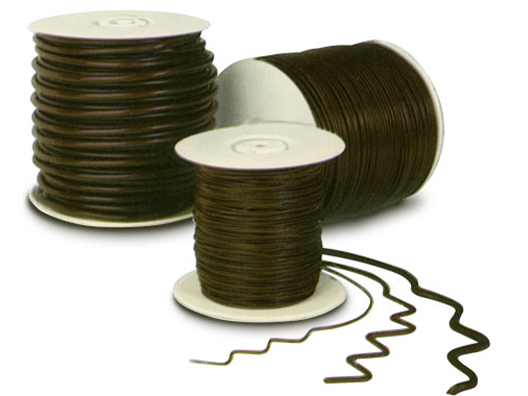

Freeman Core Vent Wax (brown) is formulated to be used in most any climate condition and leave a very minimum amount of ash when dissipated. The primary use is to vent cores of curved or irregular designs. The wax is placed in critical locations in the sand as the core is molded. The wax is dissipated when the core is baked, leaving a clean vent of high permeability. Commonly used for oil sand cores.

Available in full round and half round shapes.

Other sizes and styles of core vent wax are available. Contact our customer service department for details.

All indicated lengths are approximations.

View the MSDS

Coming soon

Request For Quote & Ordering Information

Catalog Number	Description	UM	Net Wt.	Dia	W	L	Ship Note	Qty
086001	Solid Core Vent Wax	RL	1	1/32"		2300'
086002	Solid Core Vent Wax	RL	1	1/16"		875'
086003	Solid Core Vent Wax	RL	1	3/32"		325'
086004	Solid Core Vent Wax	RL	4	1/8"		800'
086006	Solid Core Vent Wax	RL	4	3/16"		350'
086008	Solid Core Vent Wax	RL	4	1/4"		195'
086012	Solid Core Vent Wax	RL	4	3/8"		85'
086016	Solid Core Vent Wax	RL	4	1/2"		50'
086020	Solid Core Vent Wax	RL	4	5/8"		30'
086117	Solid Core Vent Wax Half Round	RL	4	3/8"R	3/4"	41'
086118	Solid Core Vent Wax Half Round	RL	4	5/16"R	5/8"	75'
086119	Solid Core Vent Wax Half Round	RL	4	3/16"R	3/8"	150'
086120	Solid Core Vent Wax Half Round	RL	4	1/8"R	1/4"	340'
086121	Solid Core Vent Wax Half Round	RL	4	1/8"R	3/16"	600'

Click Here to View Closeout Specials

S&H - Freeman charges standard published UPS/FedEx shipping rates (unless freight is specified). All orders under $25 are subject to a $5 small order fee. International orders are subject to a $250 minimum order.

SO = Special Order, Minimum Quantities and Extended Lead Times May Apply.

HAZ-G = Hazardous material, cannot ship air, $20 surcharge applied for each package shipped ground
HAZ-A = Hazardous material, cannot ship air, no surcharge for ground shipping
FRT = must be sent by freight carrier due to size, weight, or hazardous classification

T = Thickness L = Length W = Width H = Height Dia = Diameter Rad = Radius
Net Wt. = Net Weight (shipping weight may be more)
