Starrett Trammels (59 Series)
|

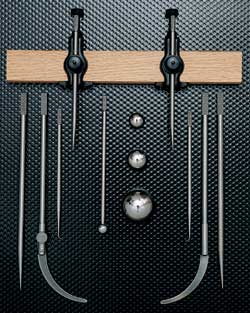

These Starrett Trammels are very handy for laying out and for scribing arcs and circles beyond the capacity of standard dividers. The trammels, consisting of two heads, will accommodate any size beam from 3/4" to 11/2" in width. The beam is not included. The accessories include large and small caliper legs, large (9") and small (6")divider points which are eccentric for close settings and a set of four ball points with holder. The ball points are used for scribing circles from the center of any hole up to 11/2" diameter. One of the caliper legs includes a joint with an eccentric thumb piece for fine adjustments. A lead pencil may be clamped in either head as a replacement for the calipers or dividers if the application requires it.
FOR DOMESTIC US SALE ONLY.
|
|
Request For Quote & Ordering Information
Catalog
Number |
Description |
UM |
Mfg.
No. |
Ship
Note |
Qty |
|
Click Here to View Closeout Specials
S&H - Freeman charges standard published UPS/FedEx shipping rates (unless freight is specified). All orders under $25 are subject to a $5 small order fee. International orders are subject to a $250 minimum order.
SO = Special Order, Minimum Quantities and Extended Lead Times May Apply.
HAZ-G = Hazardous material, cannot ship air, $20 surcharge applied for each package shipped ground
HAZ-A = Hazardous material, cannot ship air, no surcharge for ground shipping
FRT = must be sent by freight carrier due to size, weight, or hazardous classification
T = Thickness L = Length W = Width H = Height Dia = Diameter Rad = Radius
Net Wt. = Net Weight (shipping weight may be more)
|
|
|
|
