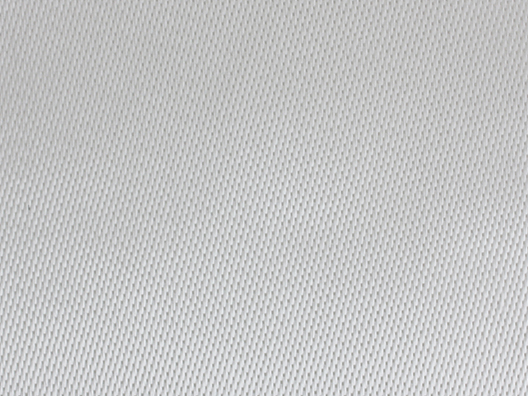

8.8 oz. Fiberglass Cloth (Style 1581)


This tightly woven fiberglass cloth is used where a high glass to resin ratio is required, thus producing a stronger, and lighter composite than is possible with a plain weave. Also, its eight-harness satin weave pattern enables it to conform around complex shapes easier than a plain weave, making it a popular choice in aerospace and other high end applications.

All Freeman fiberglass fabrics are first quality materials manufactured by BGF (unless otherwise noted) and are compatible with both epoxy and polyester resin systems.

This fabric is sold by the yard. Length of full rolls is listed below. Orders of less than 15 yards (combined total) in multiple styles will be cut and shipped professionally wound on the same tube with individual styles separated by kraft paper. Less than full roll quantity can take up to 3 business days to ship.

Please note: Cut cloth orders may or may not be continuous length.  If continuous length is required, please specify at the time of order.

Style 1581
Weave 8 Harness Satin
Finish 504 Volan
Yarn Description - Warp ECG 150 1/2
Yarn Description - Fill ECG 150 1/2
Yarns Per Inch (Ends x Picks) 57 x 54
Weight (oz./sq.yd) 8.75
Breaking Strength - Warp (lbs/in.) 198
Breaking Strength - Fill (lbs/in.) 175
Thickness (inches) 0.0099

Note: SKU #054084 60" cloth has been discontinued.

SKU Description   UM Thickness Width Length Height Board ft. Net Wt. Diameter Grade Grit Plys Radius SPB Ship Note Min. Qty Pcs/Box Pcs/Bundle Winding Ft/Box Handle Len Head Diam Head Len Mfg. # Qty
054083 BGF Fiberglass Cloth #1581 - 38" SO YD .010" 38" 125 YD 8.7
054083C BGF Fiberglass Cloth #1581 - 38" **BY THE YARD** SO YD .010" 38" 125 YD 8.7
