Type K, Screen - Brass Body Core Vents

Flyers
Customers Also Buy...
  •   Insert Drills For Core Box Air-Release Vents
  •   Freeman Vent Cleaners
  •   Foundry Locators
  •   Core Box Seals & Gaskets
    • Popular Specifications
    Brass Body (100/Pkg.) 24, 30, 35, 40 and 50 Mesh

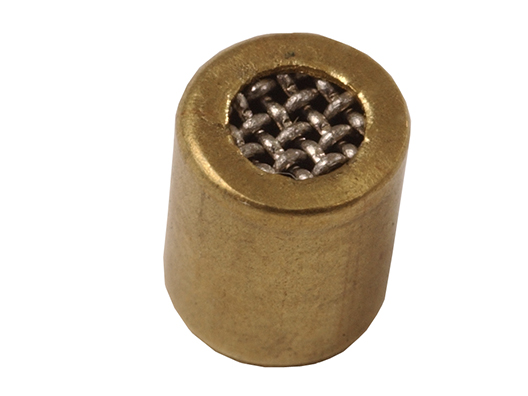

    This brass body vent offers a high venting area with a monel (corrosion resistant, nickel-copper alloy) screen. Sizes 1/2" diameter and larger have supporting bars. Available in 24, 35, 40 and 50 mesh. Other lengths are available upon request. Sold in bags of 100 vents. These vents are an alternative to the Type LM Lectromesh Brass Core Vents.

    Please see our Closeout List for additional sizes and styles available at closeout prices.

    Sand Modulus Core Vent Slot Width Core Vent Mesh Size
    Up to 55 AFS
    0.45mm (0.014")
    40 Mesh
    55-75 AFS
    0.30mm (0.012")
    50 Mesh
    75-80 AFS
    0.25mm (0.010")
    60 Mesh
    Above 80 AFS
    0.20mm (0.008")
    70 Mesh
    SKU Description   UM Thick Width Length Height Board ft. Net Wt. Diameter Grade Grit Plys Radius SPB Ship Note Min. Qty Pcs/Box Pcs/Bundle Winding Ft/Box Handle Len Head Diam Head Len Mfg. # Qty
