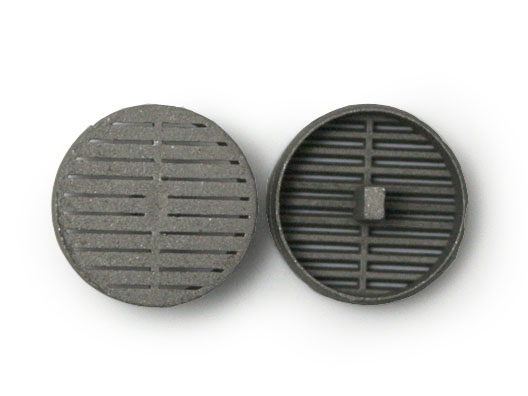

Ventistamp Meltvents FS Slotted Core Vents-Carbon
Meltvent FS vents are available in imperial or metric. These vents can be supplied with or without profile.
Sold in bags of 100 vents.
| Sand Modulus | Core Vent Slot Width | Core Vent Mesh Size |
| Up to 55 AFS | 0.45mm (0.014") | 40 Mesh |
| 55-75 AFS | 0.30mm (0.012") | 50 Mesh |
| 75-80 AFS | 0.25mm (0.010") | 60 Mesh |
| Above 80 AFS | 0.20mm (0.008") | 70 Mesh |
| SKU | Description | UM | Thick | Width | Length | Height | Board ft. | Net Wt. | Diameter | Grade | Grit | Plys | Radius | SPB | Ship Note | Min. Qty | Pcs/Box | Pcs/Bundle | Winding | Ft/Box | Handle Len | Head Diam | Head Len | Mfg. # | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 034695 | Meltvent FSP Carbon Profile Profile Vent - 3/8" Diameter, .30mm (.012") Slot Width | SO | BG | 8MM | 3/8" | FSP30H8P-3/8C |
|
||||||||||||||||||||
| 034696 | Meltvent FSP Carbon Profile Profile Vent - 1/2" Diameter, .30mm (.012") Slot Width | SO | BG | 8MM | 1/2" | FSP30H8P-1/2C |
|
||||||||||||||||||||
| 034650 | Meltvent FSP Carbon Profile Profile Vent - 5/8" Diameter, .30mm (.012") Slot Width | SO | BG | 8MM | 5/8" | FSP30H8P-5/8C |
|
||||||||||||||||||||
| 034651 | Meltvent FSP Carbon Profile Profile Vent - 3/4" Diameter, .30mm (.012") Slot Width | SO | BG | 8MM | 3/4" | FSP30H8P-3/4C |
|
||||||||||||||||||||
| 034652 | Meltvent FSP Carbon Profile Profile Vent - 1" Diameter, .30mm (.012") Slot Width | SO | BG | 8MM | 1" | FSP30H8P-1C |
|
||||||||||||||||||||
| 034763 | Meltvent FSM Carbon Profile Vent - 6mm Diameter, .45mm (.014") Slot Width | SO | BG | 8MM | 6MM | FSM45H8P-06C |
|
||||||||||||||||||||
| 034764 | Meltvent FSM Carbon Profile Vent - 8mm Diameter, .45mm (.014") Slot Width | SO | BG | 8MM | 8MM | FSM45H8P-08C |
|
||||||||||||||||||||
| 034765 | Meltvent FSM Carbon Profile Vent - 10mm Diameter, .45mm (.014") Slot Width | SO | BG | 8MM | 10MM | FSM45H8P-10C |
|
||||||||||||||||||||
| 034766 | Meltvent FSM Carbon Profile Vent - 12mm Diameter, .45mm (.014") Slot Width | SO | BG | 8MM | 12MM | FSM45H8P-12C |
|
||||||||||||||||||||
| 034746 | Meltvent FSM Stainless Steel Profile Vent - 6mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 6MM | FSM30H10P-06C |
|
||||||||||||||||||||
| 034747 | Meltvent FSM Stainless Steel Profile Vent - 8mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 8MM | FSM30H10P-08C |
|
||||||||||||||||||||
| 034748 | Meltvent FSM Stainless Steel Profile Vent - 10mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 10MM | FSM30H10P-10C |
|
||||||||||||||||||||
| 034749 | Meltvent FSM Stainless Steel Profile Vent - 12mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 12MM | FSM30H10P-12C |
|
||||||||||||||||||||
| 034750 | Meltvent FSM Stainless Steel Profile Vent - 14mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 14MM | FSM30H10P-14C |
|
||||||||||||||||||||
| 034751 | Meltvent FSM Stainless Steel Profile Vent - 16mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 16MM | FSM30H10P-16C |
|
||||||||||||||||||||
| 034752 | Meltvent FSM Stainless Steel Profile Vent - 20mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 20MM | FSM30H10P-20C |
|
||||||||||||||||||||
| 034753 | Meltvent FSM Stainless Steel Profile Vent - 25mm Diameter, .30mm (.012") Slot Width | SO | BG | 10MM | 25MM | FSM30H10P-25C |
|
