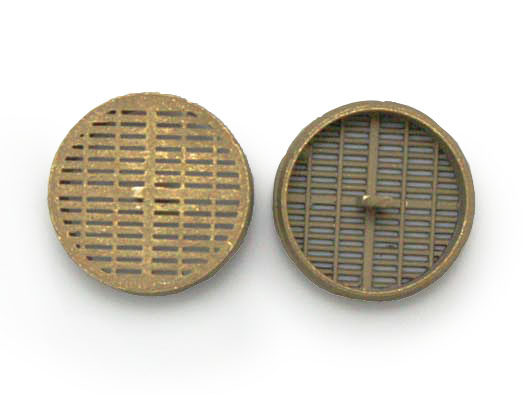

Ventistamp Zanatta Magnesium Brass Alloy Core Vents

TDS
Zanatta Vents are manufactured with a 0.012" (0.3mm) slot that is tapered 20 degrees on the back side to prevent sand clogging. These vents are made from a brass alloy (SAE 430-B) for high wear resistance and are designed to be used with sand that has an AFS fineness of 70 to 90.

Sold in bags of 100 vents.

Also available in curved and inclined head design. Please call for size and availability.

Sand Modulus Core Vent Slot Width Core Vent Mesh Size
Up to 55 AFS
0.45mm (0.014")
40 Mesh
55-75 AFS
0.30mm (0.012")
50 Mesh
75-80 AFS
0.25mm (0.010")
60 Mesh
Above 80 AFS
0.20mm (0.008")
70 Mesh
Our Customers Also Buy...
Insert Drills For Core Box Air-Release Vents
Freeman Vent Cleaners
Core Box Clamps
Core Box Seals & Gaskets
» See All Recommendations


SKU Description   UM Thick Width Length Height Board ft. Net Wt. Diameter Grade Grit Plys Radius SPB Ship Note Min. Qty Pcs/Box Pcs/Bundle Winding Ft/Box Handle Len Head Diam Head Len Mfg. # Qty
034576 Zanatta ZVP Vent - 3/16" Diameter, .30mm (.012") Slot Width BG 8MM 3/16" ZVP30H8-3/16
034577 Zanatta ZVP Vent - 1/4" Diameter, .30mm (.012") Slot Width BG 8MM 1/4" ZVP30H8-1/4
034578 Zanatta ZVP Vent - 5/16" Diameter, .30mm (.012") Slot Width BG 8MM 5/16" ZVP30H8-5/16
034579 Zanatta ZVP Vent - 3/8" Diameter, .30mm (.012") Slot Width BG 8MM 3/8" ZVP30H8-3/8
034587 Zanatta ZVP Vent - 3/8" Diameter, .45mm (.014") Slot Width SO BG 8MM 1 3/8" ZVP45H8-3/8
034580 Zanatta ZVP Vent - 7/16" Diameter, .30mm (.012") Slot Width BG 8MM 7/16" ZVP30H8-7/16
034581 Zanatta ZVP Vent - 1/2" Diameter, .30mm (.012") Slot Width BG 8MM 1/2" ZVP30H8-1/2
034583 Zanatta ZVP Vent - 5/8" Diameter, .30mm (.012") Slot Width BG 8MM 5/8" ZVP30H8-5/8
034584 Zanatta ZVP Vent - 3/4" Diameter, .30mm (.012") Slot Width BG 8MM 3/4" ZVP30H8-3/4
034586 Zanatta ZVP Vent - 1" Diameter, .30mm (.012") Slot Width BG 8MM 1" ZVP30H8-1
034588 Zanatta ZVP Vent - 1/2" Diameter, .45mm (.014") Slot Width SO BG 8MM 1 1/2" ZVP45H8-1/2
034849 Zanatta ZVP Vent - 1-1/4" Diameter, .30mm (.012") Slot Width SO BG 8MM 1-1/4" ZVP30H8-1 1/4
034679 Zanatta ZVM Vent - 20mm Diameter, .30mm (.012") Slot Width, 6.2 Seat Extractor SO BG 10MM 20MM ZVM30H10SE6.2-20LM
034630 Zanatta ZVM Vent - 25mm Diameter, .30mm (.012") Slot Width, 6.2 Seat Extractor SO BG 10MM 25MM ZVM30H10SE6.2-25LM
034678 Zanatta ZVM Vent - 30mm Diameter, .30mm (.012") Slot Width, 8.2 Seat Extractor SO BG 10MM 30MM ZVM30H10SE8.2-30LM
