Freeman Husky Dowels and Installation Tools

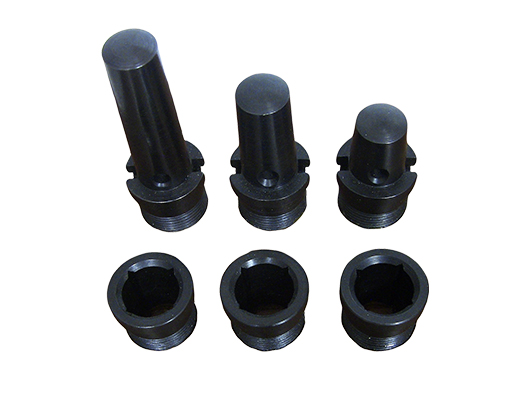

A Freeman exclusive, the No. 55 Husky Dowel is widely considered the strongest threaded body steel dowels available. It's blackened body prevents rust for a heavy duty, long life. Pin body and bushing body have the same outside diameter enabling boxes to be booked for fast, accurate installation. These dowels are sold individually or in complete sets.

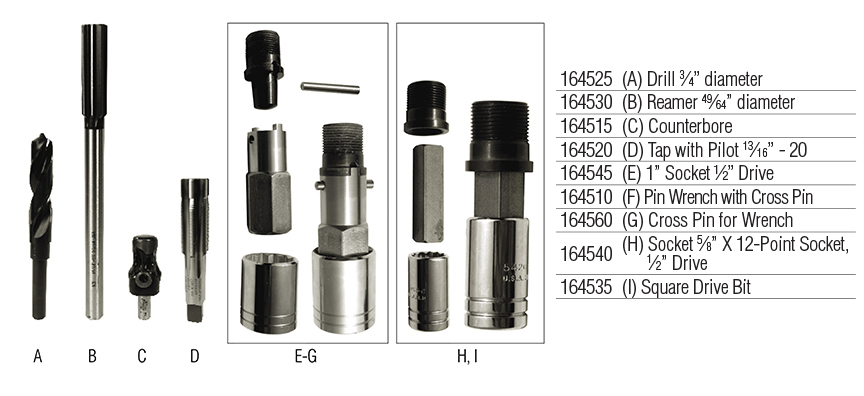

Installation Tools
Special items (** below) are designed specifically for installing Freeman Husky Dowels:
SKULetterDescription
164525ADrill 3/4" diameter
164530BReamer 49/64" diameter
164515CCounterbore**
164520DTap with Pilot 13/16" - 20**
164545E1" Socket 1/2" drive
164510FPin wrench with cross pin**
164560GSocket 5/8" x 12-Point Socket, 1/2" drive
164540HSquare Drive Bit**

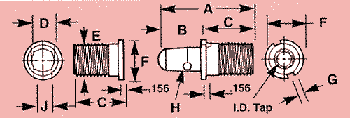

Description
A
B C D E F G H J

Male Pin
(Standard)

1-3/4"

13/16"

5/8"

15/16"

3/16"

3/16"

Male Pin
(Long)

2-1/4" 1-5/16" 5/8" 15/16" 3/16" 3/16"

Male Pin -
(Extra Long)

3" 2-1/16" 5/8" 15/16" 3/16" 3/16"

Female
Bushing

15/16" 5/8" 13/16" 15/16" 1/2"

Inside Diameter Threads for Pins: (13) 1/2" threads
Outside Diameter Threads for Pins and Bushing: (20) 13/16" threads





SKU Description   UM Thick Width Length Height Board ft. Net Wt. Diameter Grade Grit Plys Radius SPB Ship Note Min. Qty Pcs/Box Pcs/Bundle Winding Ft/Box Handle Len Head Diam Head Len Mfg. # Qty
164040 Husky Dowel Complete Set - Standard Size 25/Box $$ BX 5.9
164045 Husky Dowel Complete Set - Long Size 25/Box $$ BX
164050 Husky Dowel Complete Set - Extra Long Size 25/Box $$ BX
164020 Male Pin Standard Size $$ EA
164025 Male Pin Long $$ EA
164030 Male Pin X-Long $$ EA
164035 Female Bushing Standard $$ EA
164525 Drill 3/4" Dia. $$ EA
164530 Reamer 49/64" Dia. $$ EA
164515 Counterbore ** $$ EA
163780 Counterbore Cam Washer with Set Screws CO $$ EA
164520 Tap with Pilot 13/16-20 ** $$ EA
164545 Socket 1" Socket, 1/2" Drive $$ EA
164510 Pin Wrench with Cross Pin** $$ EA
164560 Cross Pin For Wrench $$ EA
164540 Socket 5/8" X 12-Point Socket, 1/2" Drive $$ EA
164555 Socket Wrench Handle - 10" Overall Length, 1/2" Drive CO $$ EA
164535 Square Drive Bit ** $$ EA
